Nice Drive 600 Gate Motor Repair in Paarl – When Proper Fault Finding Can Save You Money

When a customer in Paarl contacted Cape Winelands Automation about a faulty gate motor, they had already been told by another company that the motor was beyond repair and that they would need to replace the entire gate motor.

Before spending money on a completely new system, the customer asked us to inspect the motor and see whether there was another option.

We agreed to investigate the fault properly.

What followed was a good example of why accurate fault finding and experience with specific gate motor systems can make a significant difference when dealing with gate motor repairs in Paarl.

The Nice Drive 600 Gate Motor Had Suffered Serious Damage

The gate motor was a Nice Drive 600 that had suffered damage following an electrical power event.

At first glance, the damage to the electronics looked serious. Several components on the PCB had been damaged, and there was also damage to the gate’s loop detector.

However, serious electronic damage does not automatically mean that the complete gate motor needs to be replaced.

The first step was therefore not to quote for a new motor.

The first step was to find out exactly what had failed and why.

Step-by-Step Fault Finding

Because we have extensive knowledge and experience working with the Nice Drive 600 gate motor, we were able to approach the repair systematically.

Instead of simply replacing parts and hoping that the motor would operate again, we worked through the system step by step and isolated the damaged components.

This type of fault finding is particularly important after a power surge because replacing one component without identifying the rest of the damage can result in further failures.

Our investigation identified damage to the electronics, including components on the main PCB.

This photograph shows the damaged components on the Nice Drive 600 PCB.

The damage confirmed that the electronics had suffered a significant electrical event. However, the rest of the gate motor still had value and there was no reason to automatically assume that the complete operator had reached the end of its useful life.

The PCB Was Damaged – But the Motor Was Not Necessarily Finished

After isolating the damaged electronics, we determined that the PCB needed to be replaced.

A new PCB was installed and the system was then carefully tested.

This is where experience with the particular gate motor becomes important.

A gate motor is not simply a box that gets replaced when something goes wrong. The motor, gearbox, control electronics, safety devices, loop detector and electrical supply all form part of the complete installation.

A proper repair therefore involves looking at the entire system rather than replacing the most obvious component.

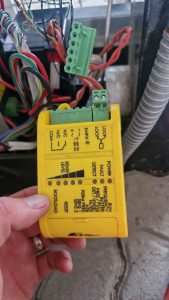

During the investigation, we also identified damage to the loop detector.

The loop detector plays an important role in vehicle detection and the safe operation of many automated gates.

The damaged unit was replaced as part of the repair.

This was another example of why proper fault finding was necessary.

Simply replacing the main gate motor would not necessarily have addressed every problem within the installation.

We Found Another Important Problem at the Main Electrical Supply

There was another issue that needed attention.

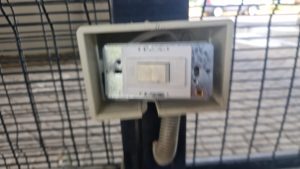

The isolator supplying the gate motor with its main electrical supply had a loose connection.

A loose electrical connection can create its own problems and can contribute to unreliable operation, overheating or electrical damage.

In this case, the connection was repaired and the electrical supply to the gate motor was checked.

This was an important part of the repair because simply installing another gate motor without correcting an underlying electrical supply problem could potentially leave the new motor exposed to the same problem.

This is one of the reasons why proper diagnosis should come before automatically replacing a gate motor.

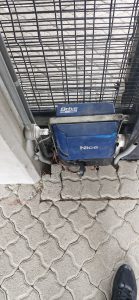

The Result – The Nice Drive 600 Was Repaired and Put Back Into Service

After replacing the damaged PCB, replacing the damaged loop detector and correcting the loose electrical connection, the Nice Drive 600 was tested.

The repaired gate motor was operating correctly and the gate was returned to service.

Most importantly, the customer did not have to replace an entire gate motor that still had useful life remaining.

The repair gave the existing Nice Drive 600 a good few more years of useful service, provided that the system is properly maintained and no further major electrical damage occurs.

Why We Don’t Automatically Recommend Replacing a Gate Motor

When a gate motor stops working, replacing the entire motor can sometimes appear to be the easiest solution.

But it isn’t always the most appropriate solution.

A professional gate motor repair in Paarl should begin with proper diagnosis.

Depending on the fault, it may be possible to repair or replace individual components rather than replacing the complete operator.

In this particular case, the customer had been told that the motor could not be repaired.

Our investigation showed that the situation was different.

The Nice Drive 600 had suffered serious electronic damage, but the damaged components could be identified and replaced. The damaged loop detector could also be replaced, and an electrical supply problem at the isolator could be corrected.

The result was a functioning gate motor without the cost of replacing the entire system.

Why Experience With the Specific Gate Motor Matters

Successful gate motor repair is not simply about replacing parts.

It is about understanding how the system works and being able to methodically isolate faults.

Our knowledge of the Nice Drive 600 allowed us to work through the system step by step rather than immediately declaring the motor beyond repair.

You can also read about another genuine gate motor repair we completed in Wellington, where a damaged Centurion D5 Evo was assessed and replaced with a D5 Smart.

This approach can be particularly valuable when dealing with older or damaged gate motors where the customer has been advised that replacement is the only option.

Sometimes the best solution is not a new gate motor.

Sometimes the best solution is finding out exactly what is wrong with the existing one.

Gate Motor Repair Paarl

If your gate motor in Paarl has stopped working, is showing signs of electrical damage, or has been affected by a power surge, don’t automatically assume that the complete motor needs to be replaced.

A proper inspection can determine whether the problem is with the PCB, motor, gearbox, safety equipment, loop detector, wiring, electrical supply or another component.

At Cape Winelands Automation, we believe in finding the fault first and then recommending the appropriate repair.

This Nice Drive 600 repair in Paarl is a genuine example of how detailed fault finding and technical knowledge can save a customer the cost of replacing a gate motor that still has useful life remaining.
