Gate Motor Installation Wellington
Choosing and installing the correct gate motor involves more than mounting a motor next to the gate.
The gate itself needs to operate correctly before automation is installed. Gate weight, length, wheels, track, hinges, alignment, daily traffic and access-control requirements all influence the installation.
Cape Winelands Automation provides gate motor installation in Wellington for homes, farms, estates, complexes and businesses.
We install and upgrade sliding and swing-gate automation, while also assessing the mechanical condition of the gate before completing the installation.
Choosing the Correct Gate Motor
Different gates require different operators.
A lighter residential sliding gate may suit a D3 Smart or D5 Smart, while a larger or more frequently used gate may require a D6 Smart, D10 Smart or D20 Smart.
For suitable swing gates, the VANTAGE range provides a different automation solution.
Nice Drive 500 is another option for suitable residential sliding gates.
The correct choice depends on the actual gate and how it will be used.
Installation Starts With the Gate
Before installing a motor, we assess the gate’s movement and condition.
We look at:
Gate wheels
Track condition
Gate alignment
Guide rollers
Rack position
Hinges
Gate stops
Motor mounting area
Electrical supply
Safety requirements
Access-control requirements
This approach helps prevent problems caused by installing a new motor onto a gate that already has mechanical issues.
New Installations and Upgrades
Gate motor installation can involve a completely new automation system or an upgrade to an existing gate.
An installation may include the motor, rack, batteries, safety beams, access control, electrical connections and other equipment required for the specific gate.
Where an existing system is being replaced, we can also assess which parts of the installation can remain and which components should be upgraded.
Gate Motor Installation in Wellington
Cape Winelands Automation provides professional gate motor installation, replacement and upgrade services in Wellington.
Our approach is simple: match the automation system to the gate, the property and the way the gate will actually be used.
Assessing the Gate Before Installation
A successful gate motor installation starts with the gate itself.
Before selecting or installing an operator, we assess how the gate moves and whether the existing mechanical components are suitable for automation.

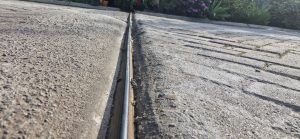

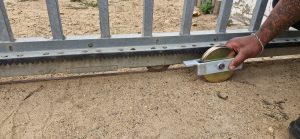

Gate Wheels and Track
Sliding gates should move smoothly along their track.
We inspect the gate wheels for wear and check the track for damage, uneven sections or other problems that could increase resistance.
A new motor cannot compensate for a gate that is difficult to move.
Gate Alignment
Correct alignment helps the gate travel consistently between the open and closed positions.
We check the gate for movement, alignment and clearance before positioning the motor and rack.

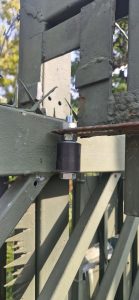

Guide Rollers
Guide rollers help control the movement of a sliding gate.
Worn, damaged or incorrectly positioned guide rollers can affect the gate’s movement and place additional strain on the automation system.

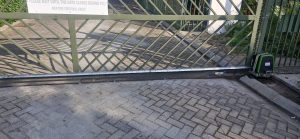

Rack and Pinion Position
The motor rack needs to align correctly with the drive pinion.
We check the rack position and mounting arrangement so that the motor can drive the gate smoothly throughout its travel.
Correct alignment also helps reduce unnecessary wear on the rack and motor drive system.
Gate Weight and Length
The gate’s size and weight are important when selecting an operator.
However, these are not the only factors.
We also consider the gate’s construction, mechanical resistance, daily operating frequency and the environment in which the gate will operate.
Daily Gate Usage
A gate used several times a day at a private home has different requirements from an entrance used continuously by residents, visitors or customers.
Expected daily traffic therefore forms part of the motor selection process.
For higher-traffic installations, we consider operators designed for the required duty level rather than simply choosing a motor based on gate weight.
Swing Gates
Swing gates require a different assessment from sliding gates.
We check the hinges, gate leaf dimensions, weight, opening angle, stops and suitable actuator mounting positions.
For suitable swing-gate installations, the VANTAGE range can provide the required automation.
Existing Gate Problems
If the gate has mechanical problems, we identify them before installing the new operator.
Depending on the condition of the gate, this may involve attention to wheels, track, hinges, guide rollers, rack, mounting points or alignment.
Correcting these issues can improve the reliability of the complete automation system.
Installation Assessment in Wellington
A proper assessment helps ensure that the selected gate motor is suitable for the actual installation.
Cape Winelands Automation can assess the gate, recommend the appropriate automation and identify any mechanical or electrical work required before commissioning the system.
Choosing the Right Gate Motor for the Installation
Once the gate has been assessed, the next step is selecting an operator that matches the installation.
There is no single gate motor that is suitable for every property. The correct choice depends on the gate, expected usage and requirements of the site.
Residential Sliding Gates
Residential sliding gates usually have lower operating demands than busy commercial entrances.
Depending on the gate and its requirements, options can include:
Centurion D3 Smart Wellington — for suitable lighter residential sliding gates.
Centurion D5 Smart Wellington — for suitable residential gates requiring greater capacity.
Centurion D6 Smart Wellington — for heavier residential gates and higher usage.
Nice Drive 500 Wellington — for suitable residential sliding gates within its rated capacity.
More information:
Centurion D3 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d3-smart-wellington/
Centurion D5 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d5-smart-wellington/
Centurion D6 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d6-smart-wellington/
Nice Drive 500 Wellington
https://capewinelandsautomation.co.za/nice-drive-500-wellington/
High-Traffic Sliding Gates
Gates serving complexes, businesses and other busy properties can require operators designed for higher operating frequencies.

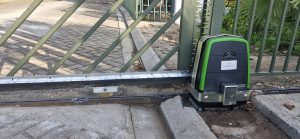

The Centurion D10 Smart Wellington is designed for larger, higher-traffic sliding-gate applications, while the Centurion D20 Smart Wellington is intended for heavier-duty applications.
More information:
Centurion D10 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d10-smart-wellington/
Centurion D20 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d20-smart-wellington/
The correct operator still depends on the actual gate and installation conditions.
Swing Gate Automation
Swing gates require a different type of operator.
The VANTAGE Wellington range is designed for suitable swing-gate installations. The correct actuator depends on factors such as gate-leaf dimensions, weight, hinges, opening angle and mounting requirements.
VANTAGE Wellington
https://capewinelandsautomation.co.za/vantage-wellington/
Selecting More Than Just the Motor
A complete gate automation installation can include much more than the operator.
Depending on the property, the system may require:
Gate motor
Rack and pinion
Batteries
Battery charger or power supply
Safety beams
Access-control equipment
Remotes or receivers
Keypads or intercoms
Manual release
Anti-theft protection
Appropriate electrical connections
The final equipment list depends on the gate and the requirements of the property.
Replacement Motor Selection
Replacing an existing gate motor does not always mean installing the same model again.
The existing gate may have changed, the usage may have increased, or the previous motor may have been incorrectly matched to the installation.
We assess the current gate and operating requirements before recommending a replacement.
This helps ensure that the new motor is selected for the actual gate and its intended use rather than simply replacing one model with another.
Gate Motor Installation Process in Wellington
A professional gate motor installation involves more than securing the operator to the gate entrance.
The installation needs to account for the gate’s mechanical movement, motor position, rack or actuator alignment, electrical supply, safety equipment and access control. Manufacturer installation guidance also requires the gate and its mechanical components to be suitable and operating correctly before automation is commissioned.
1. Assess the Gate
We first inspect the gate and determine how it currently operates.
For sliding gates, this includes checking the wheels, track, guide rollers, alignment and available motor mounting area.
For swing gates, we assess the hinges, gate leaves, stops, dimensions and suitable actuator mounting positions.
2. Select the Correct Motor
The operator is selected according to the gate and its intended use.
Factors include gate weight, length, operating frequency, mechanical resistance and whether the property is residential, commercial or industrial.
This is where the individual motor options on our Wellington pages become useful, including the D3 Smart, D5 Smart, D6 Smart, D10 Smart, D20 Smart, Nice Drive 500 and VANTAGE.
3. Prepare the Motor Mounting Area
The motor needs a solid and correctly positioned mounting point.
Where necessary, we prepare or reinforce the mounting area before installing the operator. Correct positioning helps maintain alignment between the motor and the gate throughout its travel.
4. Install the Rack or Actuator
For a sliding gate, the rack is positioned and aligned with the motor’s drive pinion.
For a swing gate, the actuator is mounted according to the gate configuration and required opening movement.
Correct mechanical alignment is important because excessive resistance or incorrect positioning can affect operation and contribute to premature wear.
5. Install the Electrical System
The electrical installation is completed according to the requirements of the selected operator.
This can include the power supply, battery system, isolator, cabling and connections.
Where mains-voltage work is required, the applicable electrical requirements must be followed and qualified electrical work used where required. Nice’s installation documentation, for example, specifies appropriate isolation and qualified installation for mains connections.
6. Install Safety Equipment
Safety equipment forms an important part of an automated gate system.
Depending on the installation, this can include infrared safety beams and other protective equipment.
The safety equipment is positioned and tested so that the gate responds correctly when an obstruction or safety condition is detected.
7. Connect Access Control
The gate motor can be integrated with the property’s access-control requirements.
Depending on the installation, this may include:
Remote controls
Receivers
Keypads
Intercoms

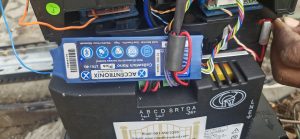

GSM or cellular access
Other access-control equipment
The equipment is configured according to the requirements of the property.
8. Programme the Operator
Once the mechanical and electrical installation is complete, the operator is programmed and configured.
The gate’s travel and operating functions are set up for the specific installation.
The manual release is also checked so that the gate can be operated manually when required.
9. Test the Complete System
The final stage is comprehensive testing.
We check:
Opening and closing movement
Gate alignment
Motor operation
Safety beams
Manual release
Remote controls
Access-control equipment
Battery operation where applicable
Gate stops
Final mechanical clearances
Manufacturer guidance also calls for testing and commissioning before the automated gate is placed into normal use.
10. Final Handover
Once the installation has been tested, the customer can be shown the basic operation of the system.
This includes normal operation, manual release and any relevant access-control functions.
The aim is to leave the customer with a gate motor system that is correctly installed, tested and suited to the way the gate will be used.
Professional Gate Motor Installation in Wellington
Cape Winelands Automation installs and upgrades gate motor systems in Wellington for homes, farms, estates, complexes and businesses.
Whether you need a new sliding-gate motor, a swing-gate operator, a replacement motor or an upgraded access-control system, we assess the complete installation before recommending the appropriate solution.
Gate Motor Safety, Access Control and Backup Power in Wellington
A gate motor installation is more than the operator itself. Safety equipment, access control and backup power can all form part of a complete automated gate system.
The exact equipment depends on the property, gate and customer’s requirements.

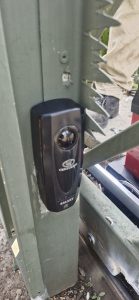

Gate Safety Beams
Safety beams help detect an obstruction in the gate’s operating area.
We can install and test suitable infrared safety beams as part of a new gate motor installation or upgrade.
Correct positioning is important because the beams need to protect the intended access area and communicate correctly with the gate controller.
Safety equipment should never be bypassed simply because it is causing an operational problem. If a gate stops or reverses unexpectedly, the cause should be diagnosed.
Access Control
Gate motors can be integrated with different types of access-control systems.
Depending on the property, this can include:
Remote controls
Keypads
Intercom systems
GSM or cellular access
Vehicle access systems
Residential access control
Complex access-control systems
For larger properties, the gate motor and access-control system need to work together reliably.
Backup Batteries
Many modern gate motors use battery backup so that the gate can continue operating during a power interruption.
Battery condition is important. A system may appear to operate normally while mains power is available but fail to provide reliable backup when the power goes off.
During installation or servicing, we can assess the battery system, charging equipment and associated connections.
Power Supply
The power requirements depend on the selected gate motor and installation.
The supply should be suitable for the operator and installed correctly. Cable routing and electrical connections also need to be considered during installation.
Where the installation requires mains electrical work, the applicable South African electrical requirements must be followed.
Anti-Theft Protection
Gate motors can be exposed to tampering, particularly at entrances where the operator is easily accessible.
Where appropriate, additional protection can be incorporated into the installation.
The type of protection depends on the motor, mounting arrangement and property requirements.
Complexes and Shared Entrances
A complex entrance can require more than simply installing a motor.
The system may need to accommodate residents, visitors, access-control equipment, safety equipment and frequent daily operation.
We assess these requirements before selecting and commissioning the gate motor.
Complete Gate Automation
A reliable installation combines the mechanical gate, motor, electrical system, safety equipment and access control.
Each component needs to work correctly as part of the complete system.
Cape Winelands Automation can install, upgrade and service these components as part of a Wellington gate automation project.
Real Gate Motor Installation Projects in Wellington
Every gate installation is different. The condition of the existing gate, the required operating frequency and the customer’s requirements all influence the final installation.
Cape Winelands Automation has completed a range of gate motor installations and upgrades in Wellington.

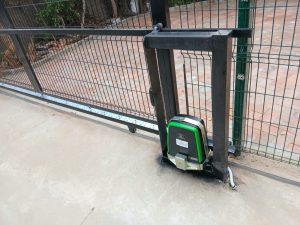

Centurion D6 Smart Installation in Wellington
One Wellington customer specifically requested a Centurion D6 Smart after experiencing reliable performance from a D6 installation previously completed by Cape Winelands Automation at another property.

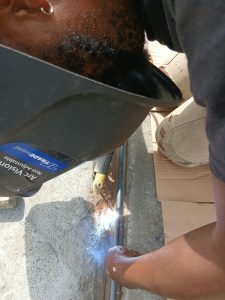

The installation included careful preparation of the motor mounting area and reinforcement of the base before installing the operator.
The D6 was then assembled, aligned and tested to ensure that the gate operated correctly.
Completed D6 Smart Installation
The completed D6 Smart installation included the motor, mounting system and anti-theft protection.
The installation was tested after completion to confirm correct gate movement and operation.
Centurion D10 Smart Upgrade in Wellington
Another Wellington installation involved replacing an existing Centurion D5 Evo with a Centurion D10 Smart.
The project required more than simply changing the motor.
The gate system was upgraded to improve the mechanical operation and reliability of the installation.
The work included:
120 mm gate wheel
Track improvements using 12 mm round bar
New gate rack
New guide wheels
Improved motor mounting and alignment
Upgraded power supply
Wireless infrared safety beam
Accentronix CellSwitch access-control integration
Centurion D10 Smart
Anti-theft protection
Improving the Gate Before Installing the D10
The existing gate was assessed before installing the D10 Smart.
The larger gate wheel, track improvements, new rack and guide wheels helped address the mechanical side of the installation.
This is an important part of a gate motor replacement. The new operator needs a gate that moves correctly rather than having to compensate for excessive mechanical resistance.
D10 Smart Access Control and Safety
The installation also included an Accentronix CellSwitch and wireless infrared safety beam.
These additions allowed the gate automation to form part of a more complete access-control and safety system.
Completed Wellington D10 Smart Installation
Once the mechanical and electrical work was completed, the D10 Smart was installed, aligned and tested.
The final installation included anti-theft protection and the upgraded gate components.
Why Real Installation Experience Matters
A gate motor installation is rarely just a matter of replacing one motor with another.
Our Wellington projects demonstrate the importance of assessing the complete gate system, including wheels, track, rack, guide rollers, mounting, power, safety equipment and access control.
This approach helps ensure that the selected motor is supported by a gate system that is suitable for reliable automated operation.
Gate Motor Replacement and Upgrades in Wellington
Replacing a gate motor is not always as simple as removing the old operator and installing a new one in the same position.
The existing gate, wheels, track, rack, electrical system and access control should be assessed before selecting the replacement motor.
Cape Winelands Automation provides gate motor replacements and upgrades in Wellington for residential properties, farms, estates, complexes and businesses.
When Should a Gate Motor Be Replaced?
A replacement may be considered when an existing operator has reached the end of its practical service life or when the gate’s requirements have changed.
Common reasons include:
Repeated motor faults
Severe mechanical or gearbox damage
An outdated operator
Increased daily gate usage
A gate that has become heavier or more demanding
Lack of suitable parts
Electrical or control problems
Security or access-control upgrades
A motor that is incorrectly matched to the gate
However, a faulty motor does not automatically need replacement. We first assess whether a repair is practical.
Upgrading More Than the Motor
A replacement installation provides an opportunity to inspect the complete gate system.
Depending on the condition of the gate, an upgrade may include:
Larger or replacement gate wheels
Track repairs or improvements
New rack
Replacement guide rollers
Improved motor mounting
Battery replacement
Upgraded power supply
New safety beams
Access-control upgrades
Anti-theft protection
Addressing these components can help the new motor operate more effectively.
Replacing an Undersized Motor
An existing motor may have been selected when the gate was first automated but may no longer be suitable for the way the gate is being used.
For example, a gate serving a busy complex can experience significantly more daily operation than a typical residential entrance.
In these situations, we assess the gate and operating requirements before selecting a higher-capacity replacement.
Wellington D5 Evo to D10 Smart Upgrade
One of our Wellington projects involved replacing a Centurion D5 Evo with a D10 Smart.
The project went beyond simply changing the operator.
The gate received a 120 mm wheel, track improvements using 12 mm round bar, a new rack, new guide wheels, improved motor mounting and an upgraded power supply.
The installation also included a wireless infrared safety beam, Accentronix CellSwitch access control and anti-theft protection.
This type of upgrade demonstrates why the complete gate should be assessed when replacing an operator.
Choosing the Replacement Motor
The replacement motor should match the actual gate.
We consider:
Gate weight
Gate length
Daily operations
Gate type
Wheel and track condition
Mechanical resistance
Available power
Battery requirements
Safety equipment
Access-control requirements
Depending on the installation, the appropriate solution could include a D5 Smart, D6 Smart, D10 Smart, D20 Smart, Nice Drive 500 or VANTAGE.
Repair or Replace?
Replacement is not always the best solution.
If the existing operator is in reasonable condition and the fault can be repaired economically, repairing the motor may make more sense.
If the operator has extensive damage, is no longer suitable for the gate or requires repeated repairs, replacement may provide a more practical long-term solution.
We assess the condition of the existing system before recommending either option.
Upgrading Access Control
A motor replacement can also provide an opportunity to improve how the gate is controlled.
Depending on the property, upgrades can include remote controls, GSM or cellular access, keypads, intercoms and other access-control equipment.
Safety equipment can also be upgraded where required.
Gate Motor Replacement in Wellington
Cape Winelands Automation provides gate motor replacement and upgrade services throughout Wellington.
We look at the complete gate system, not just the motor, and recommend a solution based on the actual condition and requirements of the installation.
For repair information, see our Gate Motor Repair Wellington page:
https://capewinelandsautomation.co.za/gate-motor-repair-wellington/
For our wider range of Wellington gate motor options:
https://capewinelandsautomation.co.za/gate-motor-guide-wellington/
Gate Motor Maintenance in Wellington
Regular gate motor maintenance can help identify mechanical, electrical and safety problems before they result in an unexpected failure.
The motor is only one part of an automated gate. The gate, wheels, track, rack, hinges, batteries, safety equipment and access control all need to work together correctly.
Check the Gate Movement
A sliding gate should move smoothly along its track, while a swing gate should move freely on its hinges.
Increased resistance can place additional strain on the motor.
During maintenance, we check the gate’s movement and investigate any changes from its normal operation.
Inspect Wheels, Track and Hinges
For sliding gates, we inspect the wheels, track and guide rollers for wear or damage.
For swing gates, we check the hinges, mounting points and gate movement.
Mechanical problems can affect the performance of even a correctly selected gate motor.
Check the Rack and Drive
Sliding-gate rack and motor alignment should be inspected as part of routine maintenance.
We check for excessive wear, movement or alignment problems that could affect the drive system.
Check the Battery
Battery condition is particularly important on battery-driven gate motors.
A weak battery may not be obvious while mains power is available but can become a problem during a power interruption.
We can inspect the battery, charging system and relevant electrical connections.
Test Safety Equipment
Safety beams and other protective equipment should be tested during maintenance.
We check that the safety equipment responds correctly and that the gate does not continue operating when a safety condition is detected.
Check Access Control
Where the gate forms part of an access-control system, we can also check the associated equipment.
This may include remotes, receivers, keypads, intercoms, GSM or cellular equipment and other access-control devices.
Check the Motor and Mounting
The motor mounting should remain secure and correctly aligned.
We inspect the operator, mounting points and surrounding components for signs of movement, damage or abnormal wear.
Maintenance for Complexes and Busy Gates
Busy entrances can experience significantly more operation than a private residential gate.
Complexes, businesses and other high-traffic properties can therefore benefit from regular inspections of the complete gate system.
The maintenance requirements should reflect the amount of use and the operating environment.
Preventative Maintenance in Wellington
Regular maintenance can help identify problems with wheels, track, rack, batteries, safety equipment and access control before they become larger repairs.
Cape Winelands Automation provides gate motor servicing and maintenance in Wellington for residential, commercial, farm, estate and complex properties.
Gate Motor Installation Wellington FAQs
How much does gate motor installation cost in Wellington?
The cost depends on the gate, motor selected, condition of the existing gate and additional equipment required.
A straightforward residential installation will have different requirements from a complex entrance or heavy commercial gate.
An assessment allows the installation requirements to be determined before the appropriate equipment is selected.
Which gate motor is best for my gate?
There is no single motor that is suitable for every gate.
The correct operator depends on the gate type, weight, length, daily usage, mechanical condition and access-control requirements.
Cape Winelands Automation can assess the gate and recommend a suitable option.
Can you replace my existing gate motor?
Yes.
We can assess the existing motor and determine whether it should be repaired, replaced or upgraded.
A replacement installation can also include improvements to the wheels, track, rack, guide rollers, power supply, safety equipment or access control where required.
Can you install a gate motor on an existing gate?
Yes.
Existing sliding and swing gates can often be automated if the gate is mechanically suitable.
We first check the gate’s movement, condition, mounting points and other relevant components before installing the operator.
Do you repair the gate before installing the new motor?
Where necessary, yes.
If worn wheels, damaged track, stiff hinges, poor alignment or other mechanical problems affect the gate, these issues should be addressed before or during the installation.
A new motor should not be expected to compensate for a poorly operating gate.
Can you upgrade my access control at the same time?
Yes.
Depending on the property, an installation can include access-control equipment such as remotes, keypads, intercoms, GSM or cellular access and other compatible systems.
Do gate motors have battery backup?
Many modern gate motors use battery backup.
The exact battery configuration depends on the operator and installation. We can assess the battery and charging system during installation or servicing.
Can you install safety beams?
Yes.
Suitable infrared safety beams can be installed as part of a new gate motor installation or upgrade.
The beams are positioned and tested according to the requirements of the gate system.
Can you install gate motors for complexes?
Yes.
Complex entrances often require careful consideration of daily traffic, access control, safety equipment and backup power.
We can assess the complete entrance and recommend an appropriate automation system.
Can you replace an undersized gate motor?
Yes.
If the existing motor is struggling because it is unsuitable for the gate or its current operating requirements, we can assess the installation and recommend a more appropriate operator.
However, we also check the gate’s mechanical condition because excessive resistance can make a correctly sized motor appear unsuitable.
How long does a gate motor installation take?
Installation time varies according to the gate and the complexity of the project.
A straightforward replacement can be very different from an installation requiring track repairs, new wheels, access-control equipment, safety beams or electrical work.
The condition of the gate is therefore an important factor.
Do you install both sliding and swing gate motors?
Yes.
Cape Winelands Automation installs automation for both sliding and suitable swing gates in Wellington.
The appropriate operator depends on the gate design and operating requirements.
Do you provide gate motor installation in Wellington?
Yes.
Cape Winelands Automation provides gate motor installations, replacements, upgrades, repairs and servicing in Wellington for homes, farms, estates, complexes and businesses.
Gate Motor Installation Wellington
If you need a new gate motor, replacement operator or automation upgrade in Wellington, Cape Winelands Automation can assess your gate and recommend a suitable solution.
We install and upgrade sliding and swing gate motors for homes, farms, estates, complexes and businesses.
Our approach includes assessing the gate itself, selecting the appropriate operator, installing the required equipment and testing the complete system before handover.
Explore Wellington Gate Motor Options
For detailed information about the different gate motors available for Wellington installations:
Gate Motors Wellington – Installation, Repairs & Motor Options
https://capewinelandsautomation.co.za/gate-motor-guide-wellington/
Centurion D3 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d3-smart-wellington/
Centurion D5 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d5-smart-wellington/
Centurion D6 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d6-smart-wellington/
Centurion D10 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d10-smart-wellington/
Centurion D20 Smart Wellington
https://capewinelandsautomation.co.za/centurion-d20-smart-wellington/
Nice Drive 500 Wellington
https://capewinelandsautomation.co.za/nice-drive-500-wellington/
VANTAGE Wellington
https://capewinelandsautomation.co.za/vantage-wellington/
Need a Gate Motor Repaired?
If you already have a gate motor that is faulty, unreliable or struggling with the gate, see our dedicated repair page:
Gate Motor Repair Wellington
https://capewinelandsautomation.co.za/gate-motor-repair-wellington/
We can assess whether the existing system should be repaired, upgraded or replaced.
Gate Motor Installation in Wellington
Cape Winelands Automation provides professional gate motor installation, replacement, upgrades, repairs and servicing in Wellington.
Quality workmanship. Local installer. Quick response time. Honoured guarantee.
