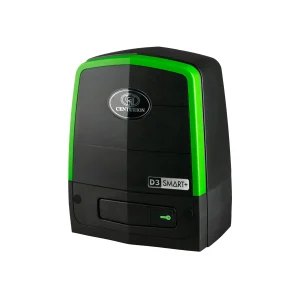

Centurion D3 Smart Wellington
The Centurion D3 Smart is a compact sliding gate motor designed for domestic gates weighing up to 300 kg. It is the entry-level operator in Centurion’s D-Series Smart range and is intended for residential applications.
For homeowners in Wellington, the D3 Smart can provide automated access with a 12V battery-driven motor system, battery backup and electronic collision sensing. The motor can operate at speeds of up to 24 metres per minute, depending on the gate and operating conditions.
Choosing a gate motor should not be based on gate weight alone. The condition of the gate, wheels, track and rack, together with the expected daily usage and installation environment, should also be considered.
Cape Winelands Automation can assess the complete sliding-gate system and determine whether a Centurion D3 Smart is suitable for your Wellington property.
Centurion D3 Smart Technical Specifications
The Centurion D3 Smart is designed specifically for domestic sliding gates. Its specifications make it suitable for smaller residential gates where the gate weight, daily usage and mechanical condition fall within the motor’s operating limits.
| Specification | D3 Smart |
|---|---|
| Motor voltage | 12V DC |
| Maximum gate mass | 300 kg |
| Maximum gate length | 10 m |
| Maximum gate speed | Up to 24 m/min |
| Rated gate speed | Up to 21 m/min |
| Maximum daily operations | 20 |
| Motor power supply | Battery-driven |
| Standard battery | 1 × 12V |
| Starting push force | 18 kgf |
| Rated push force | 12 kgf |
| Collision sensing | Electronic |
| Operating temperature | -15°C to +50°C |
| Receiver frequency | 433.92 MHz |
| Remote storage | Up to 32 remotes |
| Protection rating | IP55 |
| Manual override | Lockable key release |
The actual performance of the motor can vary according to the gate, load, installation conditions and operating configuration. The maximum specifications should therefore not be treated as a recommendation that every gate within those limits is automatically suitable.
For a Wellington installation, the condition of the gate is particularly important. Wheels, track, rack alignment and gate movement should be checked before the motor is selected and installed.
Centurion D3 Smart Features
The Centurion D3 Smart combines a compact 12V gate motor with electronic control features designed specifically for domestic sliding gates. It is intended to provide reliable everyday automation while also giving the installer control over the way the gate operates.
Battery-Driven Operation
The D3 Smart operates from a 12V battery housed inside the operator. The built-in charger maintains the battery when mains power is available, while the battery provides backup operation during a power interruption.
This can be particularly useful for Wellington homeowners who still need access to their property when the electricity supply is unavailable.
Electronic Collision Sensing
The D3 Smart uses electronic collision sensing with adjustable sensitivity and automatic reverse functionality. If the system detects an obstruction during operation, the gate can respond according to its programmed safety settings.
Safety beams can also be incorporated into the installation where required.
Adjustable Gate Operation
The D3 Smart allows the installer to configure important aspects of the gate’s operation. These include opening and closing speeds, acceleration and deceleration, automatic closing and different operating modes.
The system also supports pedestrian opening, allowing the gate to be opened partially when full vehicle access is not required.
MyCentsys Pro Setup
The D3 Smart can be configured using the MyCentsys Pro smartphone application. This provides the installer with a convenient way to access setup and configuration functions during installation and servicing.
The motor also provides automated gate-limit setup, helping configure the opening and closing positions correctly.
Built-In Receiver
The D3 Smart includes an onboard code-hopping multichannel receiver. The receiver can store up to 32 remotes, with selective adding and deleting of remotes.
This makes the D3 Smart suitable for typical residential applications where a household needs multiple remote controls.
Theft-Deterrent Protection
The current D3 Smart incorporates a theft-deterrent cage designed to provide additional physical protection for the operator. The cage uses additional support brackets to strengthen the mounting arrangement.
For a residential installation, the motor’s physical security should be considered alongside the gate’s electrical and access-control security.
Why These Features Matter
A gate motor should not be selected only because it can move a particular gate weight. The way the gate is used, the condition of the mechanical components, required safety equipment and the property’s access-control requirements all influence the suitability of the installation.
Cape Winelands Automation can assess these factors when installing, servicing or upgrading a D3 Smart gate motor in Wellington.
Is the D3 Smart Suitable for Your Wellington Gate?
The Centurion D3 Smart is designed for domestic sliding gates up to 300 kg. For a typical residential property in Wellington, it can be a suitable option when the gate falls within the motor’s specifications and the expected daily usage is appropriate.
However, the motor’s maximum gate weight should not be the only consideration.
When the D3 Smart May Be Suitable
The D3 Smart can be considered for a residential sliding gate where:
The gate weighs no more than the manufacturer’s specified maximum
The gate moves freely and smoothly
The wheels and track are in good condition
The rack is correctly installed and aligned
Daily gate usage is within the motor’s rated application
The installation has suitable electrical and mounting conditions
The required safety and access-control equipment can be incorporated
A properly maintained gate places less unnecessary strain on the motor. Before installation, the gate should therefore be checked rather than simply selecting a motor based on its maximum weight rating.
When a Larger Motor May Be More Appropriate
A D3 Smart is not necessarily the right choice simply because a gate weighs less than 300 kg.
A property with substantially higher daily traffic may require a different motor. Likewise, a gate that is difficult to move, has damaged wheels or track, or has excessive mechanical resistance should be repaired before a new operator is installed.
For heavier or higher-use applications, a larger Centurion model may be more appropriate. The D5-Evo Smart, for example, is rated for gates up to 500 kg and up to 150 operations per day, while the D6 Smart is rated for up to 600 kg and is designed for more demanding domestic and residential applications.
The correct choice should therefore be based on the complete installation rather than simply choosing the largest available motor.
D3 Smart for Wellington Homes
For a normal residential gate in Wellington, the D3 Smart can provide a compact and capable automation solution where its specifications match the gate and expected usage.
Cape Winelands Automation can assess the gate, wheels, track, rack, mounting area and existing electrical installation before recommending whether a D3 Smart is appropriate.
If the existing gate is already automated, we can also determine whether the best solution is to repair the current motor, upgrade the installation or replace the operator with a more suitable model.
Centurion D3 Smart Installation Considerations in Wellington
Installing a D3 Smart correctly involves more than securing the motor to a concrete base. The gate and its mechanical components need to be checked so that the operator can work within its intended operating conditions.
Check the Gate Before Installation
Before installing a D3 Smart, the sliding gate should move freely by hand.
The installer should check:
Gate wheels
Gate track
Rack condition
Rack and pinion alignment
Gate frame and structure
Motor mounting position
Electrical supply
Battery condition and requirements
Safety-beam positioning
Access-control requirements
A gate that is difficult to move can place unnecessary load on the motor. Dirt, stones, damaged track sections, worn wheels or incorrect rack alignment can also interfere with smooth operation. Centurion’s technical support documentation specifically identifies mechanical obstructions and rack-related problems as possible causes of gate operating faults.
Motor Mounting and Alignment
The D3 Smart is installed on a foundation plate that allows the motor position and height to be adjusted during installation.
Correct positioning is important because the rack must mesh correctly with the motor’s pinion without placing unnecessary pressure on the drive system. Centurion’s installation manual provides specific procedures for setting the foundation plate, mounting height and rack position.
Safety Beams
Safety beams can be incorporated into a D3 Smart installation to help protect the gate operating area.
Centurion provides wiring and configuration procedures for both Photon and i5 infrared beams on the D3 Smart. When correctly configured, a closing beam can cause the gate to stop and reopen if an obstruction is detected in its path.
Replacing an Older Gate Motor
The D3 Smart can also be used as a retrofit in certain existing D3, D5 and D5-Evo installations.
However, the existing foundation plate should be inspected before it is reused. Centurion states that a foundation plate in good condition can be retained, while a corroded or damaged plate should be replaced. Rack positioning may also need to be adjusted to achieve the correct rack-and-pinion mesh.
This means that replacing an older motor should not simply involve removing the old operator and installing the new one. The condition of the existing installation should be checked first.
Professional D3 Smart Installation in Wellington
Cape Winelands Automation can assess the complete gate before installing a Centurion D3 Smart in Wellington.
Where required, installation work can include correcting gate movement problems, improving the motor mounting arrangement, checking rack alignment, fitting safety beams and configuring the motor and access-control equipment.
The aim is to install the motor as part of a properly functioning gate system rather than treating the motor as a standalone component.
Centurion D3 Smart vs D5 Smart in Wellington
The Centurion D3 Smart and larger D5-Evo Smart are both 12V sliding-gate operators, but they are designed for different levels of gate capacity and usage.
The D3 Smart is rated for gates up to 300 kg and up to 20 operations per day, while the D5-Evo Smart is rated for gates up to 500 kg and up to 150 operations per day. Both have a maximum speed of up to 24 metres per minute, although their rated speeds differ.
| Feature | D3 Smart | D5-Evo Smart |
|---|---|---|
| Maximum gate mass | 300 kg | 500 kg |
| Maximum gate length | 10 m | 20 m |
| Maximum speed | Up to 24 m/min | Up to 24 m/min |
| Rated speed | Up to 21 m/min | Up to 19 m/min |
| Maximum daily operations | 20 | 150 |
| Motor voltage | 12V DC | 12V DC |
| Starting push force | 18 kgf | 30 kgf |
| Rated push force | 12 kgf | 17 kgf |
| Receiver storage | 32 remotes | 1,500 remotes |
Which One Is Suitable?
For a normal domestic gate with relatively low daily traffic and a gate within the D3 Smart’s specifications, the D3 Smart can be an appropriate solution.
The D5-Evo Smart provides substantially more capacity for heavier gates and higher-frequency use. It may therefore be more appropriate for a larger residential installation, a property with higher daily traffic or a gate that falls outside the D3 Smart’s specifications.
The correct choice should always be based on the actual gate and how it will be used rather than simply choosing the larger motor.
What About the Newer SMΔRT+ Range?
Centurion has transitioned its SMΔRT operators to the newer SMΔRT+ range. The original D3 SMΔRT and D5-Evo SMΔRT are being discontinued as new-production models, with existing units continuing to receive technical support.
For a new Wellington installation, the availability of the relevant current model should therefore be confirmed before ordering.
Cape Winelands Automation can assess the gate and explain the available Centurion options based on the gate’s weight, condition, daily usage and installation requirements.
D3 Smart Repairs and Servicing in Wellington
A Centurion D3 Smart that is no longer operating correctly does not automatically need to be replaced. The fault should first be identified so that the motor and the rest of the gate system can be assessed.
Cape Winelands Automation provides D3 Smart gate motor repairs and servicing in Wellington for residential properties and other suitable applications.
Common D3 Smart Problems
Problems with a D3 Smart installation can have different causes. Depending on the symptoms, an inspection may include:
Motor not operating
Gate stopping during operation
Gate reversing unexpectedly
Slow or inconsistent movement
Battery or charging problems
Remote-control problems
Safety-beam faults
Rack and pinion problems
Worn pinion
Gate wheel or track problems
Electrical supply faults
Access-control problems
The motor is not always the cause of the problem. A gate that has become difficult to move can increase the load on the operator, while incorrect rack and pinion engagement can also affect operation.
D3 Smart Maintenance
Regular maintenance should include the complete automated gate rather than the motor alone.
Centurion’s maintenance documentation includes periodic checks of the rack and pinion engagement, pinion condition, foundation-plate fasteners and other components. The manufacturer also recommends checking for sand buildup and insect infestation inside the operator.
The gate itself should also be checked. Wheels, track, rack, gate alignment and mechanical movement can all affect the way the motor operates.
Repair or Replace a D3 Smart?
A fault does not necessarily mean that the complete motor must be replaced.
Where the existing D3 Smart is in suitable condition, repairing the fault may be practical. In other situations, replacement may make more sense, particularly if the motor is badly damaged or the gate has become unsuitable for the operator.
The complete installation should therefore be assessed before deciding between repair, upgrade or replacement.
D3 Smart Repairs in Wellington
Cape Winelands Automation can inspect the D3 Smart and associated gate components to identify the likely cause of the problem.
For more information about our Wellington repair service, see:
[Gate Motor Repair Wellington]
We can assess the motor, gate mechanism, wheels, track, rack, battery, safety equipment and access-control components as part of the diagnosis.
If the D3 Smart is no longer the appropriate motor for the gate, we can also discuss alternative Centurion options based on the gate’s weight, daily usage and installation requirements.
Centurion D3 Smart Upgrades in Wellington
A D3 Smart installation can be expanded with additional equipment where the property requires more than basic remote-controlled gate operation.
The appropriate upgrades depend on the property, gate layout, access requirements and the way the gate is used.
Safety Beam Upgrade
Infrared safety beams can be added to help protect the gate opening.
The D3 Smart supports compatible Centurion safety beams, including Photon and i5 beams. A correctly configured closing beam can stop and reopen the gate when an obstruction is detected in its path.
Wireless Photon SMΔRT beams can also be used where a suitable installation calls for a cleaner, cable-free solution.
Cellular Gate Access
Where remote access is required, a D3 Smart can be integrated with suitable cellular access equipment.
Centurion’s documentation provides wiring information for connecting a G-Ultra to the D3 Smart controller. This type of setup can allow authorised users to activate the gate without relying solely on a conventional remote.
This can be useful for properties where controlled access for family members, staff, visitors or service providers is required.
Solar Power
The D3 Smart can also be configured for solar-powered operation using an appropriate solar supply, external battery and regulator.
This can be considered for properties where mains power is unavailable or where a solar-based gate installation is preferred.
The correct solar and battery configuration depends on the installation and expected usage.
Additional Remote and Access-Control Requirements
The standard D3 Smart receiver is intended for domestic applications and supports up to 32 remotes. Where a property requires a different access-control arrangement, an external receiver or other compatible access-control equipment can be considered.
For a typical home, the standard receiver may be sufficient. More complex properties may require a different access-control solution.
D3 Smart Security Improvements
The D3 Smart also incorporates a theft-deterrent cage. Centurion’s current documentation describes the cage as an improved design with additional support brackets intended to provide stronger physical deterrence against theft.
Additional security and access-control equipment can be considered depending on the property and installation requirements.
Choosing the Right D3 Smart Upgrade
Not every D3 Smart installation needs every available accessory.
Cape Winelands Automation can assess the Wellington property and recommend practical additions based on the gate, access requirements and customer’s priorities.
Possible additions can include:
Infrared safety beams
Wireless safety beams
Cellular access control
External receiver equipment
Solar power
Additional access-control equipment
Security improvements
The objective is to build an automated gate system that suits the property rather than adding equipment that is not required.
Frequently Asked Questions About the Centurion D3 Smart
What size gate can a D3 Smart operate?
The Centurion D3 Smart is designed for domestic sliding gates with a maximum gate mass of 300 kg. The gate must also move freely and meet the manufacturer’s installation requirements.
How fast is the D3 Smart?
The D3 Smart has a maximum gate speed of up to 24 metres per minute, with a rated speed of up to 21 metres per minute. Actual speed depends on the gate, load and configuration.
How many times can a D3 Smart operate per day?
Centurion specifies a maximum of 20 operations per day for the D3 Smart. The actual suitability of the motor also depends on the gate and the way it is used.
Does the D3 Smart work during a power failure?
Yes. The D3 Smart is battery-driven and uses a 12V battery system. This allows the gate to continue operating during a mains power interruption, subject to the condition and capacity of the battery and the number of operations required.
Can safety beams be fitted to a D3 Smart?
Yes. Compatible infrared safety beams can be connected to the D3 Smart. Centurion provides wiring and configuration information for both i5 and Photon beams.
Can a D3 Smart be used with access control?
Yes. The D3 Smart can be integrated with suitable access-control equipment. Centurion provides connection information for equipment such as the G-Ultra and external receivers.
Can the D3 Smart be solar powered?
Yes. Centurion provides a configuration for powering the D3 Smart from a solar panel, external battery and regulator. The correct solar setup depends on the installation and expected usage.
Can an existing D3 Smart be repaired?
In many cases, yes. The fault should first be diagnosed to determine whether the problem involves the motor, battery, electrical system, gate, rack, wheels, track or another component.
Can an old gate motor be replaced with a D3 Smart?
A D3 Smart can be used as a replacement in suitable installations, but the existing gate and mounting arrangement should be inspected first. Centurion’s installation documentation includes specific procedures for retrofit installations.
Is the D3 Smart suitable for a Wellington home?
The D3 Smart is designed for domestic sliding gates up to 300 kg and can be suitable for a Wellington residential property when the gate, daily usage and installation conditions fall within its specifications.
Cape Winelands Automation can assess the complete gate before recommending a D3 Smart or another suitable gate motor.
Do you repair D3 Smart gate motors in Wellington?
Yes. Cape Winelands Automation can assess D3 Smart motors and associated gate components in Wellington.
For our general repair service, see Gate Motor Repair Wellington.
Centurion D3 Smart Installation and Repairs in Wellington
If you are considering a Centurion D3 Smart for your Wellington property, the gate should be assessed before the motor is selected.
Cape Winelands Automation can inspect the gate, wheels, track, rack and existing automation to determine whether a D3 Smart is suitable or whether another gate motor would be more appropriate.
We can assist with:
Centurion D3 Smart installations
D3 Smart replacements
D3 Smart repairs
Gate motor servicing
Gate wheels and track repairs
Rack replacement and alignment
Safety beams
Access-control equipment
Battery and power-related problems
Gate motor upgrades
If your existing D3 Smart is giving problems, we can also diagnose the fault and determine whether repairing the motor or upgrading the system is the better option.
For more information about gate motor options in the area, visit our Gate Motors Wellington guide.
For existing motor faults, see our Gate Motor Repair Wellington service page.
Quality workmanship. Local installer. Quick response time. Honoured guarantee.
