Centurion D6 Smart Wellington – Installation, Repairs & Information
The Centurion D6 Smart is a residential sliding gate motor designed for properties that need more capacity than smaller domestic operators. It can handle gates of up to 600 kg and provides battery-backed operation for reliable everyday use.
For Wellington properties, the correct motor depends on more than the gate’s weight. The condition of the gate, wheels, track and rack also affects motor performance. In addition, the expected number of daily operations can influence which motor suits the installation.
The D6 Smart provides a strong option for larger residential sliding gates. However, a larger motor does not automatically solve mechanical problems. A gate with worn wheels, damaged track or excessive resistance can place unnecessary strain on any gate motor.
Cape Winelands Automation can inspect the complete gate system before recommending a D6 Smart. We can also assess an existing installation when you need repairs, servicing or an upgrade.
A Genuine D6 Smart Installation in Wellington
Cape Winelands Automation has installed a Centurion D6 Smart at a Wellington property where the customer specifically wanted the D6. The customer had previously used a D6 installed by us at another property and wanted the same model again.
The installation included careful preparation of the gate-motor mounting area and reinforcement of the base. We then assembled and commissioned the D6 Smart before testing the completed system.
This project also demonstrates an important point: choosing a gate motor involves more than comparing specifications. The motor must work correctly with the gate, track, wheels, rack and safety equipment as one complete system.
Centurion D6 Smart Technical Specifications
The Centurion D6 Smart provides additional capacity for larger residential sliding gates. Its specifications help determine whether the motor matches the gate and its expected workload.
| Specification | D6 Smart |
|---|---|
| Motor type | Sliding gate motor |
| Motor voltage | 24V DC |
| Maximum gate mass | Up to 600 kg |
| Maximum daily operations | Up to 150 |
| Maximum gate speed | Up to 35 m/min |
| Battery backup | Yes |
| Application | Residential sliding gates |
| Gate control | Electronic control system |
| Safety | Electronic collision sensing |
| Manual release | Key-operated manual release |
The 600 kg maximum gate mass gives the D6 Smart more capacity than the smaller D3 Smart. However, the actual suitability of the motor depends on the complete gate installation.
For example, a 500 kg gate with smooth-running wheels and a correctly aligned track can place less strain on a motor than a lighter gate with damaged wheels or excessive mechanical resistance.
Therefore, we always recommend checking the gate itself before selecting or replacing the motor. The wheels, track, rack, alignment, mounting position and daily usage can all affect the final choice.
What the Specifications Mean for a Wellington Installation
The D6 Smart can suit larger residential gates where the installation requires additional capacity. In addition, its battery-backed 24V system can continue operating during a mains power interruption, provided the battery has sufficient charge.
The motor’s electronic control system also manages important operating and safety functions. However, correct installation remains essential. The installer must set the motor correctly and ensure that the gate moves freely before commissioning the system.
As a result, the D6 Smart should form part of a properly prepared gate system rather than simply replacing an older motor on an existing problem gate.
Centurion D6 Smart Features
The Centurion D6 Smart combines a 24V DC motor system with electronic control and battery-backed operation. These features make it suitable for residential sliding gates that require dependable everyday automation.
Battery-Backed Operation
The D6 Smart uses a battery system to provide backup power when the mains supply fails. Therefore, the gate can continue operating during a power interruption, provided the battery has enough charge.
Battery condition matters, however. An ageing or damaged battery can reduce backup performance. Regular servicing can identify battery problems before they leave the gate without reliable backup power.
Electronic Collision Sensing
The D6 Smart uses electronic control to monitor gate movement and detect abnormal resistance. This feature helps the motor respond when the gate encounters an obstruction.
However, collision sensing does not replace proper safety equipment. A professional installation should also consider safety beams and the specific risks around the gate.
Anti-Theft Protection
The D6 Smart installation can include physical security measures that help protect the motor from unauthorised access or tampering. In addition, correct mounting and secure installation help protect the equipment over the long term.
For exposed installations, we can assess the motor position and surrounding equipment to identify practical security improvements.
Access Control Integration
The D6 Smart can work as part of a wider access-control system. Depending on the property, the installation can incorporate remote controls, keypads, intercom systems, cellular access and other compatible access-control equipment.
This approach allows the gate motor to form part of a complete entrance system rather than operating as a standalone device.
Adjustable Gate Operation
The installer can configure important operating parameters to suit the gate and installation. Correct setup helps the motor operate smoothly while reducing unnecessary strain on the mechanical components.
For that reason, we do not treat motor setup as a simple plug-in procedure. We check the gate movement, mechanical components and safety equipment before completing the commissioning process.
MyCentsys Pro Setup
Centurion’s setup tools provide installers with access to configuration and diagnostic functions on compatible products. This can make commissioning, adjustment and servicing more efficient.
As a result, professional setup can help identify operating issues and ensure that the motor matches the specific gate installation.
Is the D6 Smart Suitable for Your Wellington Gate?
The Centurion D6 Smart can suit a range of larger residential sliding gates in Wellington. However, the gate’s weight represents only one part of the assessment.
Before recommending a D6 Smart, we look at several important factors.
Gate Weight and Size
The D6 Smart can handle gates weighing up to 600 kg within the manufacturer’s operating requirements. Therefore, it provides more capacity than smaller residential models such as the D3 Smart.
However, you should not select a motor based on weight alone. A large gate with smooth movement can operate efficiently, while a lighter gate with excessive resistance can place unnecessary strain on the motor.
Gate Wheels and Track
The wheels must carry the gate correctly and allow it to move freely. In addition, the track should remain straight, secure and free from conditions that create excessive resistance.
Worn wheels can increase the load on the motor. Similarly, a damaged or uneven track can affect gate movement and cause unnecessary wear.
For this reason, we check the wheels and track before installing a new motor.
Rack and Pinion Alignment
The rack must engage correctly with the motor pinion throughout the gate’s movement. Poor alignment can create noise, resistance and uneven loading.
We therefore check the rack position and alignment during installation or replacement work.
Daily Gate Usage
The D6 Smart can support up to 150 operations per day according to its rated application. Nevertheless, the actual traffic pattern remains important.
For example, a private residential property with regular family use has different requirements from a busy entrance serving multiple households. In the latter situation, we may recommend a different motor or installation approach after assessing the site.
Gate Condition
A new motor cannot compensate for a gate that has serious mechanical problems.
Therefore, we look at the complete system before making a recommendation. This includes the gate frame, wheels, track, rack, mounting area, electrical supply and safety equipment.
When a D6 Smart Makes Sense
The D6 Smart can make sense when a Wellington property needs a capable residential sliding gate motor with additional capacity and battery-backed operation.
It can also provide a suitable replacement when an existing installation needs more capacity than a smaller motor can comfortably provide.
However, every gate remains different. Our assessment considers the actual installation rather than choosing a motor from the gate weight alone.
D6 Smart vs D5 Smart
The Centurion D5 Smart and D6 Smart both suit residential sliding gates. However, they offer different capacity levels, so the correct choice depends on the gate and its expected workload.
| Feature | D5 Smart | D6 Smart |
|---|---|---|
| Maximum gate mass | Up to 500 kg | Up to 600 kg |
| Motor voltage | 24V DC | 24V DC |
| Maximum daily operations | Up to 150 | Up to 150 |
| Maximum gate speed | Up to 35 m/min | Up to 35 m/min |
| Battery backup | Yes | Yes |
| Application | Residential sliding gates | Residential sliding gates |
When the D5 Smart May Be Suitable
The D5 Smart can provide enough capacity for many residential gates weighing up to 500 kg. Therefore, there is no reason to choose a larger motor simply because it has a higher maximum capacity.
A well-maintained gate with smooth wheels, a good track and correct rack alignment can work effectively with the appropriate motor.
When the D6 Smart May Be More Appropriate
The D6 Smart provides additional capacity for gates up to 600 kg. As a result, it can suit a larger residential gate where the D5 Smart does not provide the desired capacity.
However, gate weight remains only one part of the decision. We also consider the gate’s mechanical condition, daily usage, available mounting space and the overall installation.
Choosing Between the Two
The best approach involves assessing the complete gate before selecting the motor. For example, if a gate weighs well below the D5 Smart’s limit and runs smoothly, the D5 Smart may provide sufficient capacity.
On the other hand, a heavier residential gate may justify the additional capacity of the D6 Smart.
Cape Winelands Automation can assess your Wellington gate and recommend a suitable motor based on the actual installation rather than choosing a model from weight alone.
D6 Smart Installation in Wellington
A reliable D6 Smart installation starts with the gate itself. Before mounting the motor, we check the mechanical condition of the complete sliding-gate system.
Check the Gate Before Installation
First, we make sure the gate moves freely from fully open to fully closed. The wheels must run smoothly, while the track should provide a stable path throughout the gate’s movement.
If the gate creates excessive resistance, we address the mechanical problem before commissioning the motor. This approach reduces unnecessary strain and helps the motor operate more efficiently.
Prepare the Motor Mounting
The motor needs a solid and stable mounting surface. Therefore, we check the mounting area and reinforce it where necessary.
During a D6 Smart installation, the mounting position must also allow correct alignment between the motor pinion and the rack. Poor positioning can cause unnecessary wear and noisy operation.
Check the Rack and Pinion
The rack must engage correctly with the motor throughout the full travel of the gate. We check the height, alignment and condition of the rack before completing the installation.
If the existing rack has excessive wear or damage, replacing it can form an important part of the upgrade.
Check the Wheels and Track
The motor drives the gate, but the wheels carry the gate’s weight. Consequently, worn wheels can create additional resistance and place unnecessary load on the motor.
We therefore inspect the wheels and track before installing the D6 Smart. Where required, we can replace worn wheels, repair the track or correct other mechanical problems.
Install Safety Equipment
A gate motor installation should also consider pedestrian and vehicle safety. Safety beams can help detect an obstruction and form an important part of a properly configured automated gate system.
We assess the gate layout and recommend suitable safety equipment for the property.
Power and Battery Backup
The D6 Smart uses a battery-backed 24V system. We check the power supply, battery condition and wiring during installation or servicing.
In addition, we make sure the system receives a stable power supply and that the battery can provide the expected backup operation.
Access Control
Many Wellington properties require more than a basic remote-control system. Depending on the property, we can integrate suitable access-control equipment such as cellular access, keypads, intercoms or other compatible devices.
As a result, the completed installation can provide both automated gate movement and controlled property access.
Final Testing and Commissioning
Once installation work is complete, we test the gate through its full operating cycle. We check the movement, limits, safety equipment, remote controls and access-control functions.
Finally, we confirm that the motor operates correctly before handing the installation back to the customer.
D6 Smart Repairs and Servicing in Wellington
A D6 Smart can develop operating problems for several reasons. Sometimes the motor itself needs attention. However, mechanical problems with the gate can also cause poor performance.
Cape Winelands Automation can diagnose and repair D6 Smart installations in Wellington and surrounding areas.
Common D6 Smart Problems
A D6 Smart may show symptoms such as:
The gate does not open or close.
The motor starts but stops during operation.
The gate moves slowly or unevenly.
The motor makes unusual noises.
The gate reverses unexpectedly.
The battery does not provide normal backup operation.
Remote controls stop working correctly.
Safety beams prevent normal operation.
The motor struggles to move the gate.
The rack or pinion shows excessive wear.
Access-control equipment stops triggering the gate.
These symptoms do not always mean that the motor needs replacement. For example, worn gate wheels or a damaged track can increase resistance and make a working motor appear faulty.
Mechanical Problems Can Affect the Motor
We inspect the complete gate before recommending a replacement. The wheels, track, rack and gate alignment can all affect motor performance.
Therefore, repairing the underlying mechanical problem can sometimes restore reliable operation without replacing the motor.
Electrical and Battery Problems
The D6 Smart relies on its electrical supply and battery system. A weak battery, charging problem, damaged wiring or power-supply fault can affect normal operation.
We can test these components and identify the cause before recommending further work.
Safety Beam and Access-Control Problems
A gate may also stop operating because a safety beam detects an obstruction or because an access-control device fails to send the correct signal.
We can investigate the motor, safety equipment and access-control system together. This approach helps identify the actual cause instead of replacing parts unnecessarily.
Repair or Replace?
Repairing a D6 Smart can make sense when the motor remains in good condition and the fault has a practical solution. On the other hand, severe damage, repeated failures or an unsuitable installation may justify replacement.
We assess the condition of the motor and the complete gate before making that decision.
For broader information about gate motor repairs in the area, see our Gate Motor Repair Wellington service page.
D6 Smart Upgrades and Gate Motor Replacements in Wellington
A gate motor replacement provides an opportunity to improve more than the motor itself. For example, an older installation may also have worn wheels, a damaged track, an ageing rack or outdated access-control equipment.
When we replace a gate motor, we therefore inspect the complete installation first.
Mechanical Upgrades
A new motor cannot compensate for poor gate mechanics. Consequently, we check the wheels, track, rack and gate alignment before installing a D6 Smart.
Where necessary, we can replace worn wheels, improve the track or replace damaged rack sections. These improvements can reduce resistance and help the new motor operate correctly.
Safety Upgrades
An older gate may also need improved safety equipment. We can assess the existing safety beams and recommend suitable replacements or additional protection where required.
In addition, we check the gate’s operating area for potential hazards before completing the installation.
Access-Control Upgrades
Many older gate installations rely only on basic remote controls. However, modern properties may require more flexible access options.
Depending on the installation, we can add or upgrade equipment such as cellular access, keypads, intercoms and other compatible access-control systems.
Power and Battery Upgrades
We also check the power supply and battery system when replacing an older motor. A reliable power source helps the D6 Smart deliver consistent operation and battery backup.
If the existing electrical installation cannot provide suitable power, we can address the problem as part of the upgrade.
Security Improvements
A motor replacement can also provide an opportunity to improve physical security. We can assess the motor mounting, protective equipment and surrounding installation and make practical improvements where appropriate.
When Replacement Makes Sense
Replacement can make sense when an existing motor has suffered major damage, has reached the end of its useful service life or no longer suits the gate.
However, replacement is not always necessary. If the existing D6 Smart remains in good condition, a proper repair or service may provide a more practical solution.
Cape Winelands Automation can assess the complete installation and explain the available repair, upgrade or replacement options before work begins.
Centurion D6 Smart Installation in Wellington
Cape Winelands Automation recently completed a Centurion D6 Smart installation in Wellington for a residential customer who specifically requested the D6 Smart.
The customer had previously used a Centurion D6 installed by Cape Winelands Automation at another property. That installation had provided reliable service, so the customer wanted the same model for the new property.
Preparing the Gate for the D6 Smart
We started by preparing a solid mounting area for the new motor. The installation required careful attention to the base because the motor needs a stable mounting position for reliable long-term operation.
We also checked the gate movement and alignment before completing the installation. These checks help ensure that the motor does not have to overcome unnecessary mechanical resistance.
Reinforcing the Motor Base
During the installation, we welded and reinforced the motor mounting base. This created a stronger foundation for the D6 Smart and provided a secure mounting point.
The reinforcement formed an important part of the installation because a stable motor base helps maintain correct alignment between the motor and the gate rack.
D6 Smart Installation and Assembly
Once the mounting work was complete, we assembled the D6 Smart and positioned it correctly against the gate rack.
We then checked the mechanical movement before commissioning the motor. This allowed us to identify and correct alignment issues before final testing.
Final Testing
After completing the installation, we tested the D6 Smart through its operating cycle. We checked the gate movement, motor operation and installation alignment before handing the system over to the customer.
The completed installation provided the customer with the D6 Smart they specifically wanted, backed by our local Wellington installation and servicing support.
Why the Customer Chose the D6 Smart
The customer did not choose the D6 simply because it has a higher capacity rating. Their previous experience with a D6 installed by us influenced the decision.
This project demonstrates why every gate installation should consider the customer’s requirements together with the actual gate, mechanical condition and expected usage.

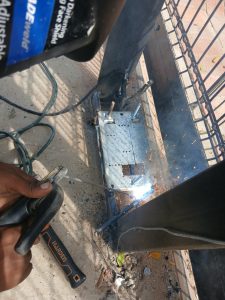

Technician welding additional reinforcement metal to the mounting base during a Centurion D6 Smart installation in Wellington.

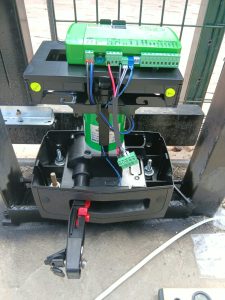

Centurion D6 Smart part-way through installation at a residential property in Wellington.
Completed Centurion D6 Smart installation in Wellington with the anti-theft bracket fitted and the gate operating.

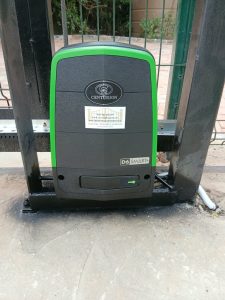

Fully assembled Centurion D6 Smart ready for final testing at a Wellington residential property.
D6 Smart Maintenance in Wellington
Regular maintenance can help keep a D6 Smart and the complete gate system operating reliably. However, maintenance should cover more than the motor itself.
Check the Gate Movement
The gate should move smoothly from fully closed to fully open. If the gate becomes harder to move, the motor may need to work harder than normal.
Therefore, unusual resistance can indicate a problem with the wheels, track, rack or gate alignment.
Inspect the Wheels and Track
The wheels carry the gate while the motor provides the driving force. Consequently, worn wheels can increase the load on the motor.
We check the wheels and track during servicing and look for wear, damage, alignment problems and other issues that could affect gate movement.
Check the Rack
The rack should remain correctly aligned with the motor pinion. Excessive wear, loose sections or incorrect positioning can affect the way the motor drives the gate.
We can inspect the rack and correct problems before they develop into more serious mechanical faults.
Check the Battery
The battery provides backup power when the mains supply fails. However, batteries have a limited service life and can lose capacity over time.
During servicing, we can check the battery and identify signs that it may need attention.
Test Safety Equipment
Safety beams and other safety equipment should operate correctly. We therefore test these components as part of a complete gate-motor service.
In addition, we check the gate’s operating area for obstructions or changes that could affect safe operation.
Check Access Control
Remote controls, cellular systems, keypads and other access-control equipment can also develop faults. We can test these systems alongside the motor to ensure that the complete entrance system works correctly.
Professional Servicing
Regular servicing can identify smaller problems before they become major repairs. As a result, a maintenance visit can help protect the motor, gate mechanics and access-control equipment while keeping the installation operating reliably.
D6 Smart Wellington FAQs
Is the Centurion D6 Smart suitable for a residential gate in Wellington?
Yes. The D6 Smart can suit larger residential sliding gates, provided the gate meets the manufacturer’s operating requirements. We also check the wheels, track, rack, gate movement and daily usage before recommending the motor.
How much weight can a D6 Smart handle?
The D6 Smart has a maximum gate mass of up to 600 kg within its specified operating conditions. However, gate weight alone does not determine whether the motor suits an installation.
How many times can the D6 Smart operate per day?
The D6 Smart supports up to 150 operations per day within its rated application. Therefore, it can suit many residential properties with regular daily traffic.
Does the D6 Smart have battery backup?
Yes. The D6 Smart uses a battery-backed 24V system. The battery can keep the gate operating during a mains power interruption, provided it has sufficient charge.
Can you repair a D6 Smart in Wellington?
Yes. Cape Winelands Automation can diagnose and repair D6 Smart installations in Wellington and surrounding areas. We check both the motor and the gate mechanics because problems with wheels, track or rack can also affect motor operation.
Should I replace my old gate motor with a D6 Smart?
Not necessarily. A repair may provide a better solution if the existing motor remains in good condition. However, a D6 Smart replacement may make sense when the existing motor has suffered major damage, reached the end of its service life or no longer suits the gate.
Can you upgrade the access control with a D6 Smart?
Yes. Depending on the property, we can integrate suitable access-control equipment such as cellular access, keypads, intercoms and other compatible systems.
Does the D6 Smart require safety beams?
Safety requirements depend on the specific gate installation. We assess the operating environment and recommend suitable safety equipment, including safety beams where appropriate.
What if my gate is under 600 kg but difficult to move?
Gate weight is only one part of the assessment. A gate with worn wheels, a damaged track or poor alignment can create excessive resistance. Therefore, we recommend correcting mechanical problems rather than relying on a larger motor to overcome them.
Can you install a D6 Smart in Wellington?
Yes. Cape Winelands Automation provides gate motor installation, replacement, repairs and servicing in Wellington and surrounding areas.
Centurion D6 Smart Wellington – Installation, Repairs and Servicing
If you are considering a Centurion D6 Smart in Wellington, Cape Winelands Automation can assess the complete gate installation and recommend a suitable solution.
We provide:
Centurion D6 Smart installations
Gate motor replacements
D6 Smart repairs and servicing
Gate wheel and track repairs
Rack replacement and alignment
Safety beam installation
Access-control upgrades
Battery and power-system checks
Gate motor upgrades and maintenance
We work on the complete gate system rather than looking at the motor alone. Therefore, we can identify mechanical or electrical problems that may affect the reliability of the installation.
If your existing gate motor has stopped working, is struggling to move the gate or requires regular repairs, we can assess the problem and explain the available options.
Related Wellington Services
For general information about gate motors and available models, visit our Gate Motors Wellington – Installation, Repairs & Motor Options guide.
If you need a repair rather than a new installation, see our Gate Motor Repair Wellington service page.
You can also explore our Centurion D3 Smart Wellington page if you are comparing different residential gate motor options.
Quality workmanship. Local installer. Quick response time. Honoured guarantee.
