Heavy-Duty Gate Motor Repair Wellington: Replacing a Damaged Nylon Rack with Metal Rack

Large sliding gates can place very high demands on a gate motor and its rack system. This is especially true on industrial and other heavy-duty gates where the gate has considerable mass and momentum.

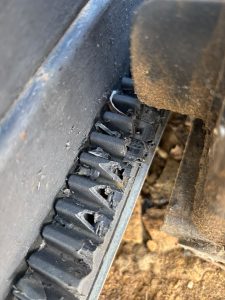

During a recent gate motor repair in Wellington, we found a damaged nylon rack on a large sliding gate. The rack had reached the point where it was no longer suitable for the demands being placed on the gate.

Why can a heavy gate damage a nylon rack?

A large sliding gate carries significant momentum when it is moving. Normally, the motor, rack and gate work together to accelerate and stop the gate in a controlled manner.

However, there are situations where the gate needs to stop suddenly.

For example, if the safety beams detect a person, vehicle or another obstruction while the gate is moving, the automation system may need to stop the gate quickly. On a large, heavy gate, stopping all that moving mass places considerable load on the mechanical components.

Over time, repeated heavy stopping forces can contribute to wear or damage of a nylon rack.

This is one reason why the rack material and the overall gate setup need to be considered when dealing with large or high-traffic sliding gates.

Upgrading from nylon rack to metal rack

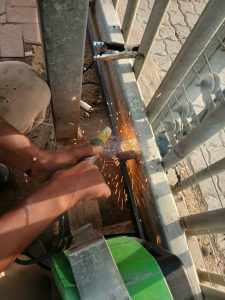

For this Wellington installation, we replaced the damaged nylon rack with a heavy-duty metal rack.

For a large industrial-style gate, the higher initial cost of a metal rack can make sense when compared with repeatedly replacing nylon rack sections.

A properly installed metal rack can provide a much more durable solution for gates that are heavy, frequently used or subject to substantial stopping forces.

The important point is that the rack should be selected according to the actual gate rather than simply choosing the cheapest option.

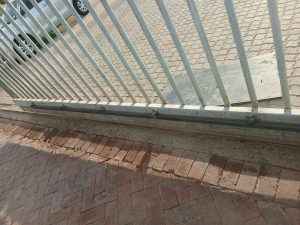

The finished installation

Once the replacement rack was installed and correctly aligned, the gate could operate against the new rack system.

Correct installation and alignment are particularly important with a metal rack. The rack needs to engage correctly with the gate motor’s drive gear without placing unnecessary load on the motor or mechanical components.

Metal rack vs nylon rack – there is a trade-off

Metal rack is not completely maintenance-free and it is not automatically the best choice for every gate.

One potential long-term disadvantage is that metal rack working against a metal drive gear can eventually contribute to wear on the drive gear itself.

We have seen this happen, although in our experience it is uncommon and can take a very long time to develop.

If the drive gear eventually needs replacement, that is normally a much smaller repair than repeatedly replacing nylon rack sections on a large gate that is continually damaging them.

For large industrial-size gates, we therefore consider the heavier-duty metal rack option to be the better choice when the application demands it.

The right rack for the right gate

There is no single rack material that is correct for every sliding gate.

Nylon rack can be a very good option for many residential and lighter-duty applications. It is quieter and can be perfectly adequate when the gate weight, operating frequency and stopping forces are within the rack’s capabilities.

For a large, heavy or high-traffic gate, however, durability becomes much more important.

In those applications, the additional cost of a metal rack can be justified by reducing repeated rack failures and the inconvenience of frequent repairs.

Our approach is to look at the complete gate system — including gate weight, wheels, track, alignment, motor capacity, rack and safety equipment — before deciding on the appropriate repair or upgrade.

Wellington gate motor repairs and heavy-duty gate problems

This case is a good example of why a gate motor repair is not always just a matter of replacing the motor.

A damaged rack, worn wheels, poor alignment or excessive gate resistance can all affect the way an automation system operates.

For heavy gates, identifying the underlying mechanical problem is particularly important. Replacing a motor without addressing the gate and rack system can simply result in the same problem returning.

If your sliding gate is damaging rack, stopping incorrectly, moving unevenly or repeatedly causing gate motor problems, a proper inspection can help identify the cause.

For gate motor repairs and heavy-duty sliding gate problems in Wellington, contact Cape Winelands Automation for an assessment.
